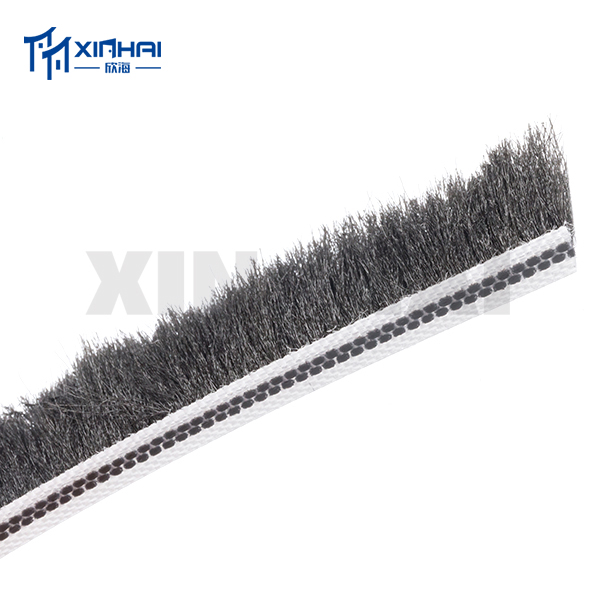

Silicone Pile Weatherstrip
Silicone-treated pile for better water resistance and aging resistance.
Base 4–25 mm · Pile 5–20 mm · Custom length
View productPile Weatherstrip Manufacturer: Specs & Options
Compare base width, pile height, material, and adhesive options to select the right pile weatherstrip for your door or window.
Quick select
Standard range: 4–25 mm
Standard range: 5–20 mm
Pile Weatherstrip Selector
Enter your slot dimensions and options — we match you with candidate products from our standard range.
Standard range: 4–25 mm
Standard range: 5–20 mm
A–G: read the spec like an engineer
Every pile weatherstrip is defined by seven dimensions. Measure yours, then match.
A
Base Width
4 mm to 25 mm
B
Pile Height
5 mm to 20 mm
C
Base Thickness
0.8 mm ± 0.15 mm (all specs)
D
Pile Width
6.9 (4P): 2.9 ± 0.3 mm; 4.8 (4P): 1.9 ± 1.5 mm; 2P2L: 1.45 mm; 3P1L: 1.45 mm / 3P2L: 2.1 mm / 3P3L: 2.68 mm; 4P2L: 2.3–2.5 mm / 4P3L: 3.4 mm / 4P4L: 4.2 mm; 5P5L: 4.7 mm / 5P4L: 4.4 mm
E
Fin Height
Same as / higher / lower than pile height; fin material: plastic or fabric
F
Strip Length
Customized
G
Base Margin Width
Varies with base width & pile width
Product lines
Pile weatherstrip selection begins with fit. Base width (4–25 mm) must match the groove or kerf. Pile height (5–20 mm) sets how much the strip compresses against the door or window sash. Base thickness is 0.8±0.15 mm. Choose silicone or non-silicone PP polypropylene yarn, adhesive or non-adhesive backing, and a plastic fin or plain profile. These options determine how the strip sits, seals, and assembles—affecting anti-wind, anti-noise, and anti-dust performance. XINHAI manufactures customizable pile weatherstrip for door and window manufacturers. We offer PP yarn, silicone/non-silicone, adhesive/non-adhesive, fin/plain, base width 4–25 mm, pile height 5–20 mm, and customized length. Factory: 20+ production lines, 2000 sqm, supplier-stated daily capacity 300,000 meters. Use the XINHAI selector tool to match your dimensions and options.

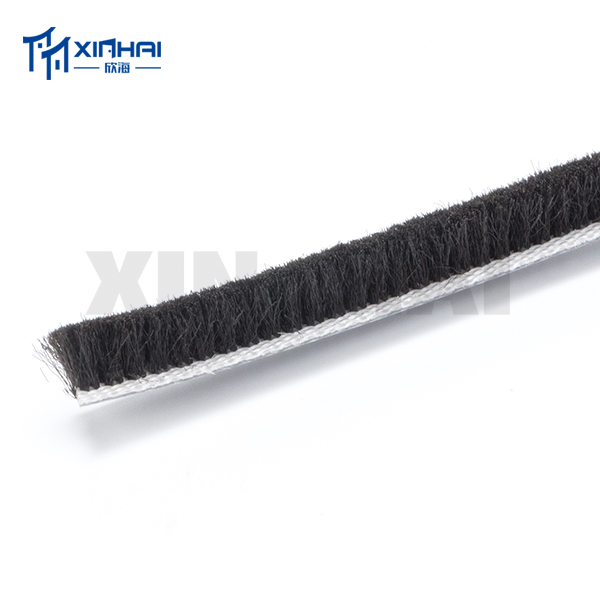

Self-Adhesive Pile Weatherstrip
Peel-and-stick backing for fast installation on doors and windows.
Base 4–25 mm · Pile 5–20 mm · Custom length
View product

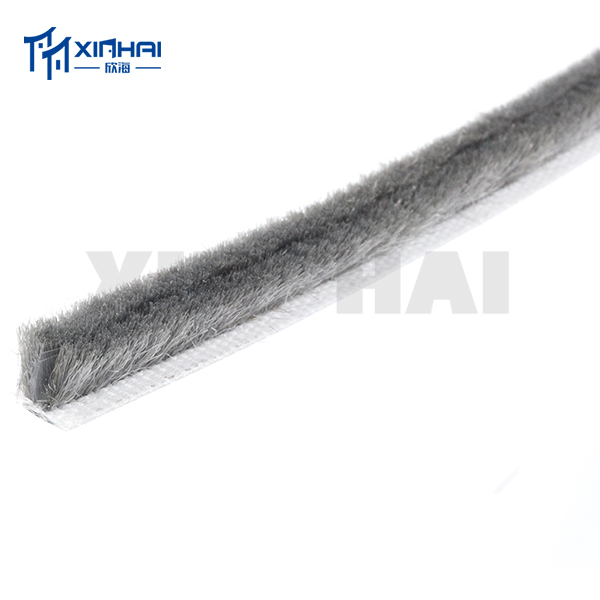

Finned Pile Weatherstrip
Pile with plastic fin for stronger wind and water barrier.
Base 4–25 mm · Pile 5–20 mm · Custom length
View productHow selection works here
1. Measure your profile slot — base width (A) and pile height (B).
2. Decide: silicone treatment? adhesive backing? plastic fin?
3. Run the selector above — candidate matches with reasoning.
4. Send the spec with one click; we confirm feasibility and quote.
Request a Quote
Tell us your spec — base width, pile height, silicone / adhesive / fin options — and we will confirm feasibility.
Get a Quote
