Name: Silicone Pile Weatherstrip
Brand: XINHAI

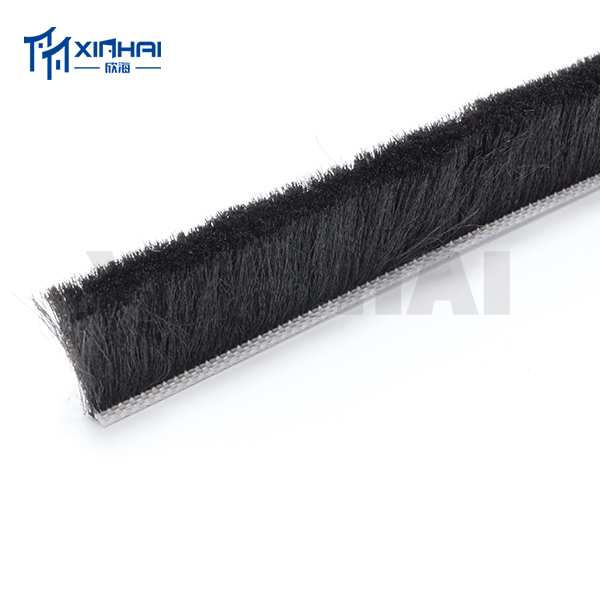

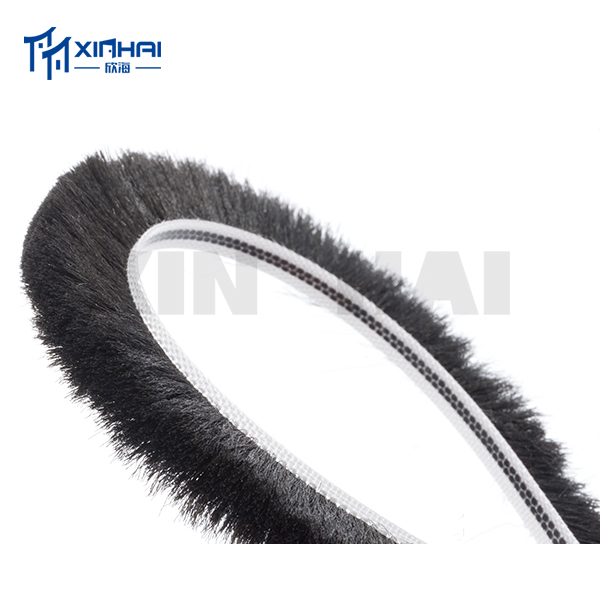

Silicone Pile Weatherstrip

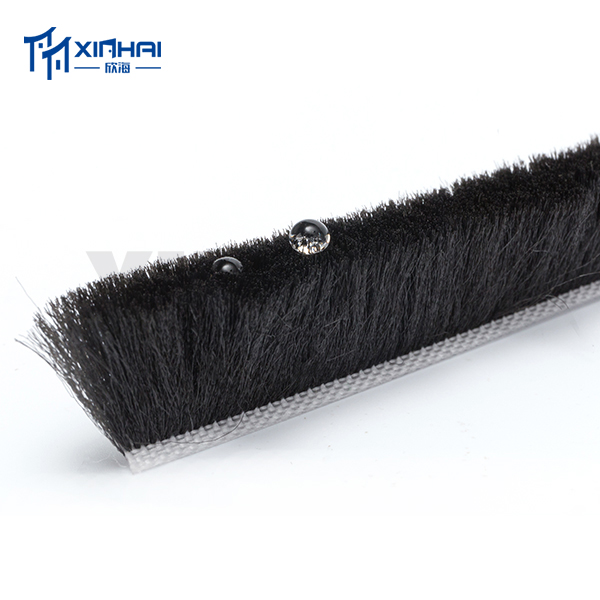

Silicone-treated pile for better water resistance and aging resistance.

XINHAI Silicone Pile Weatherstrip is a door and window sealing strip made from PP polypropylene yarn, with a silicone option. XINHAI is the brand; the company manufactures pile/brush weatherstrip for door and window sealing. Supplier-stated silicone oil treatment is intended to improve waterproof and anti-aging performance. Supplier-stated testing indicates the pile stays elastic after 50,000+ frictions, so it is specified for doors and windows needing durability. Available non-silicone, with or without adhesive, and with plastic fin or plain. Base width: 4–25 mm. Pile height: 5–20 mm. Base thickness: 0.8±0.15 mm. Length is customized. The strip is designed for anti-wind, anti-noise, and anti-dust sealing. Jiaxing Xinhai Doors And Windows Accessaries Co., Ltd. (XINHAI) was established in 2018 in Jiaxing, Zhejiang, China, with 11–50 people. Factory data: 20+ production lines, 2000 sqm, daily capacity 300,000 meters (supplier-stated). ISO 9001 was announced in company news in 2019; this is not a current certification claim. Contact: +86-573-86779825, info@jiaxingxinhai.com.

Specification (A–G)

Code

Specification

A – Base Width

4 mm to 25 mm

B – Pile Height

5 mm to 20 mm

C – Base Thickness

0.8 mm ± 0.15 mm (all specs)

D – Pile Width

6.9 (4P): 2.9 ± 0.3 mm; 4.8 (4P): 1.9 ± 1.5 mm; 2P2L: 1.45 mm; 3P1L: 1.45 mm / 3P2L: 2.1 mm / 3P3L: 2.68 mm; 4P2L: 2.3–2.5 mm / 4P3L: 3.4 mm / 4P4L: 4.2 mm; 5P5L: 4.7 mm / 5P4L: 4.4 mm

E – Fin Height

Same as / higher / lower than pile height; fin material: plastic or fabric

F – Strip Length

Customized

G – Base Margin Width

Varies with base width & pile width
