Name: Self-Adhesive Pile Weatherstrip
Brand: XINHAI

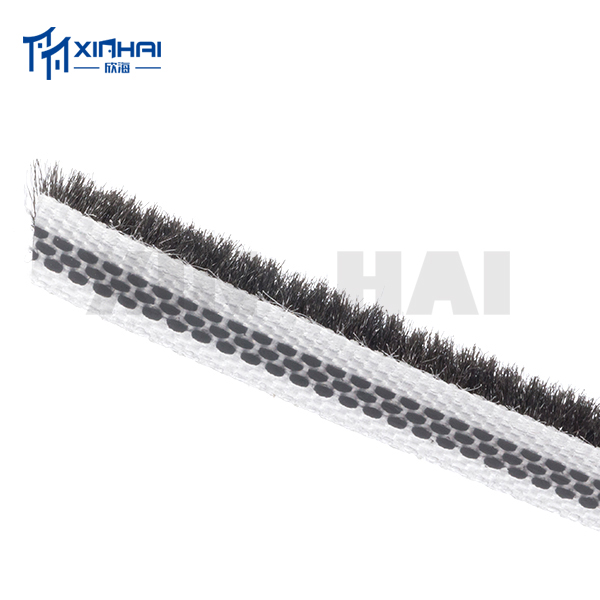

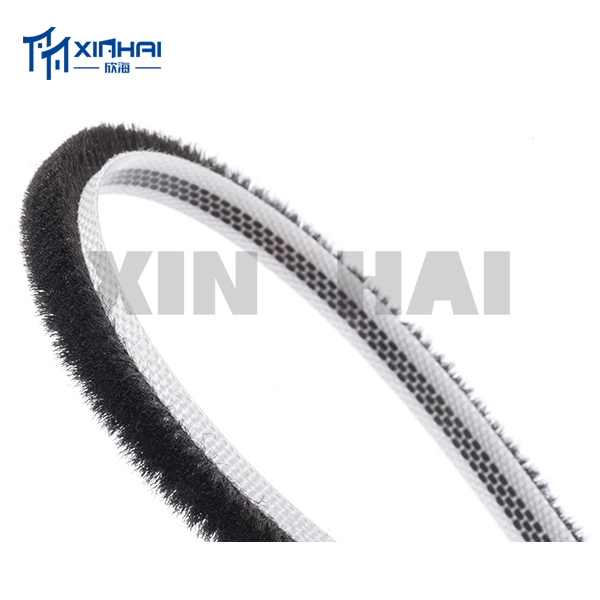

Self-Adhesive Pile Weatherstrip

Peel-and-stick backing for fast installation on doors and windows.

Self-Adhesive Pile Weatherstrip

XINHAI self-adhesive pile weatherstrip uses PP polypropylene yarn and a peel-and-stick backing for retrofit sealing on wooden or sliding doors and aluminum windows. No extra fasteners are required. It is one adhesive option in XINHAI’s pile/brush weatherstrip range for door and window sealing strips. Options include silicone or non-silicone, adhesive or non-adhesive, and with plastic fin or plain. Base width: 4–25 mm. Pile height: 5–20 mm. Base thickness: 0.8±0.15 mm. Length is customized. The pile helps resist wind, noise, and dust at door and window gaps. Jiaxing Xinhai Doors And Windows Accessaries Co., Ltd., brand XINHAI, Jiaxing, Zhejiang, China, is a manufacturer of pile/brush weatherstrip, established 2018, with 11–50 people. Factory: 20+ production lines, 2000 sqm, supplier-stated daily capacity 300,000 meters. Company news announced ISO 9001 in 2019. The self-adhesive version is intended for fast retrofit installation. Contact XINHAI for specifications: +86-573-86779825, info@jiaxingxinhai.com.

Specification (A–G)

Code

Specification

A – Base Width

4 mm to 25 mm

B – Pile Height

5 mm to 20 mm

C – Base Thickness

0.8 mm ± 0.15 mm (all specs)

D – Pile Width

6.9 (4P): 2.9 ± 0.3 mm; 4.8 (4P): 1.9 ± 1.5 mm; 2P2L: 1.45 mm; 3P1L: 1.45 mm / 3P2L: 2.1 mm / 3P3L: 2.68 mm; 4P2L: 2.3–2.5 mm / 4P3L: 3.4 mm / 4P4L: 4.2 mm; 5P5L: 4.7 mm / 5P4L: 4.4 mm

E – Fin Height

Same as / higher / lower than pile height; fin material: plastic or fabric

F – Strip Length

Customized

G – Base Margin Width

Varies with base width & pile width
