Name: Window Weather Stripping
Brand: XINHAI

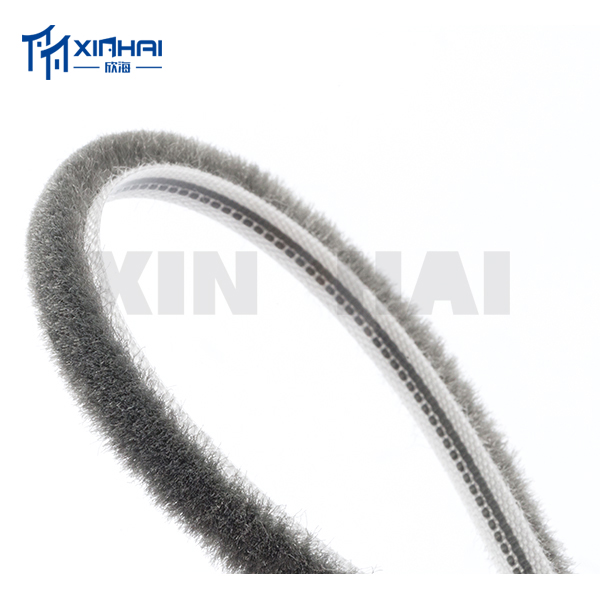

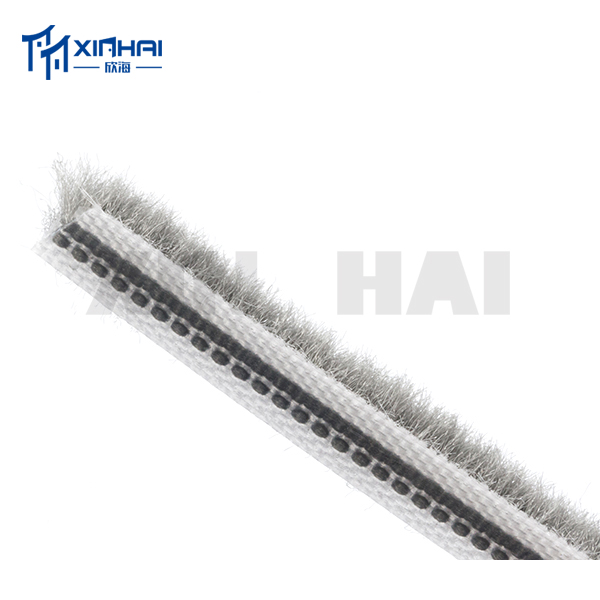

Window Weather Stripping

Pile seals for sliding and aluminum-plastic windows.

XINHAI Window Weather Stripping is a pile weatherstrip for sliding and aluminum-plastic windows. It is manufactured with PP yarn. Base width ranges from 4 mm to 25 mm. Pile height ranges from 5 mm to 20 mm. These ranges allow selection to fit profiles. Silicone and non-silicone options are available. Adhesive and non-adhesive options are available. Fin and plain options are available. The product is intended for anti-wind, noise, and dust performance. XINHAI is a pile weatherstrip manufacturer. For specification, select base width and pile height within the stated ranges. Then select silicone or non-silicone, adhesive or non-adhesive, and fin or plain according to the window profile and assembly. PP yarn is the pile material. Base width and pile height are stated in millimeters. This description covers the verified specifications. Use the stated ranges when specifying. For sliding and aluminum-plastic windows, specify XINHAI Window Weather Stripping within the verified ranges.

Specification (A–G)

Code

Specification

A – Base Width

4 mm to 25 mm

B – Pile Height

5 mm to 20 mm

C – Base Thickness

0.8 mm ± 0.15 mm (all specs)

D – Pile Width

6.9 (4P): 2.9 ± 0.3 mm; 4.8 (4P): 1.9 ± 1.5 mm; 2P2L: 1.45 mm; 3P1L: 1.45 mm / 3P2L: 2.1 mm / 3P3L: 2.68 mm; 4P2L: 2.3–2.5 mm / 4P3L: 3.4 mm / 4P4L: 4.2 mm; 5P5L: 4.7 mm / 5P4L: 4.4 mm

E – Fin Height

Same as / higher / lower than pile height; fin material: plastic or fabric

F – Strip Length

Customized

G – Base Margin Width

Varies with base width & pile width
