Name: Finned Pile Weatherstrip
Brand: XINHAI

Finned Pile Weatherstrip

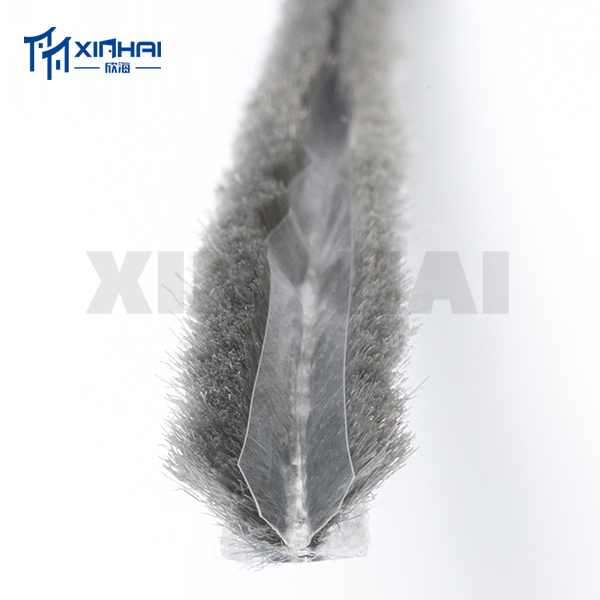

Pile with plastic fin for stronger wind and water barrier.

Finned Pile Weatherstrip combines a PP polypropylene yarn pile with a fin. The fin can be plastic or fabric. Fin height can be specified equal to, higher than, or lower than the pile, depending on the aluminum profile and required sealing. This design suits aluminum profiles that need stronger sealing than plain pile alone. Options include silicone or non-silicone pile, adhesive or non-adhesive backing, and plastic fin or plain. Base width ranges from 4 to 25 mm. Pile height ranges from 5 to 20 mm. Base thickness is 0.8±0.15 mm. Length is customized. The strip is intended for anti-wind, anti-noise, and anti-dust performance. Manufactured by Jiaxing Xinhai Doors And Windows Accessaries Co., Ltd., brand XINHAI, Jiaxing, Zhejiang, China. The factory has 20+ production lines, 2000 sqm, and daily capacity 300,000 meters (supplier-stated). Contact: +86-573-86779825, info@jiaxingxinhai.com. Specify base width, pile height, fin height, fin material, and length against the profile.

Specification (A–G)

Code

Specification

A – Base Width

4 mm to 25 mm

B – Pile Height

5 mm to 20 mm

C – Base Thickness

0.8 mm ± 0.15 mm (all specs)

D – Pile Width

6.9 (4P): 2.9 ± 0.3 mm; 4.8 (4P): 1.9 ± 1.5 mm; 2P2L: 1.45 mm; 3P1L: 1.45 mm / 3P2L: 2.1 mm / 3P3L: 2.68 mm; 4P2L: 2.3–2.5 mm / 4P3L: 3.4 mm / 4P4L: 4.2 mm; 5P5L: 4.7 mm / 5P4L: 4.4 mm

E – Fin Height

Same as / higher / lower than pile height; fin material: plastic or fabric

F – Strip Length

Customized

G – Base Margin Width

Varies with base width & pile width
